Overview

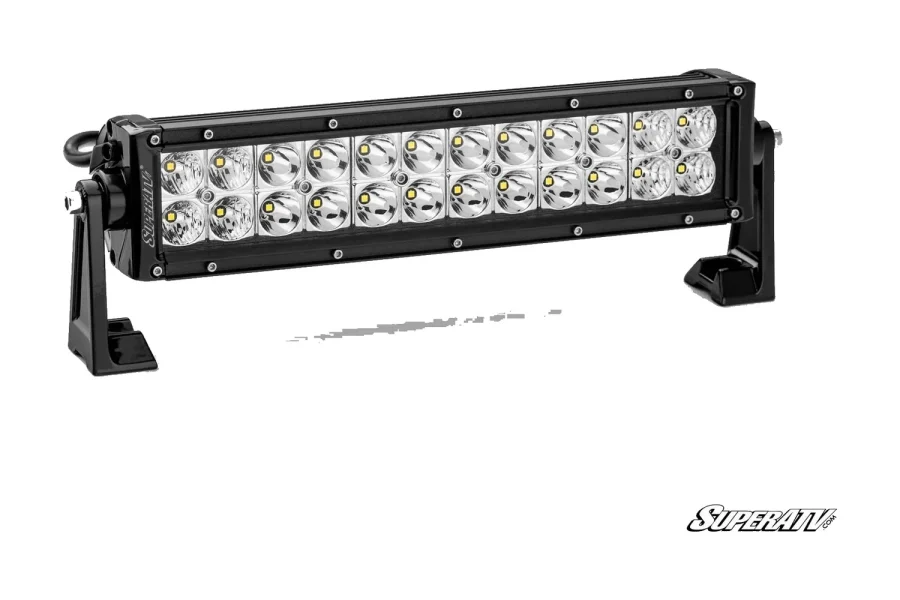

This is SuperATV’s 12 inch LED light bar. It is a combination spot and flood light with a small footprint, made to go on a bumper, roof or cage and back up the headlights at night.
What it fits
The bar is universal. SuperATV says it fits on a bumper, roof or cage. The included brackets bolt to a flat surface. For a cage, there are mounts for 1.5 inch, 1.75 inch, 1.875 inch and 2 inch tube, marked See Fitment, so measure your cage tube first.
Which brackets to pick
The options are Included brackets (Universal), Low Profile Bracket Kit (Universal), and a 1.5 inch, 1.75 inch, 1.875 inch or 2 inch Cage Mount. The cage mounts are billet aluminum with a rubber seal to stop them sliding on the tube. The low profile brackets are the ones SuperATV points to for a snug hood or roof mount.
All of our bars and mounts are in UTV light bars, and the rest is in UTV lighting.
Features
- Housing and lens: die-cast aluminum housing with a polycarbonate lens
Tech Specs
| Beam | Combination spot and flood |
|---|---|
| Power | 72 W |
| Output | 11,520 raw lumens |
| Leds | 24 OSRAM 3 W LEDs |
| Water Rating | IP67, which the maker spells out as immersion up to 1 m for up to 30 minutes |
| Working Temperature | Minus 40°F to 140°F |
Installation
Bolt the bar down, run the supplied harness to the battery and mount the rocker switch in the cab. Keep the wire away from the exhaust and from anything that moves, and aim the bar on level ground before the final tighten.
FAQs
Spot or flood?
Both. A combination bar throws a spot beam down the trail and a flood beam to the sides, which suits mixed trail riding better than either one alone.
Combination bar or the single-row bar?
They are two different twelve inch bars. This one is the combination spot and flood bar with 24 LEDs. The single-row bar is the slimmer one, with its own specs on its own page.
Do I need to buy a harness?
No. A wiring harness and rocker switch are included.
Which cage mount do I need?
Go by tube diameter. Measure the cage tube where the bar will sit and pick the matching mount.
