Overview

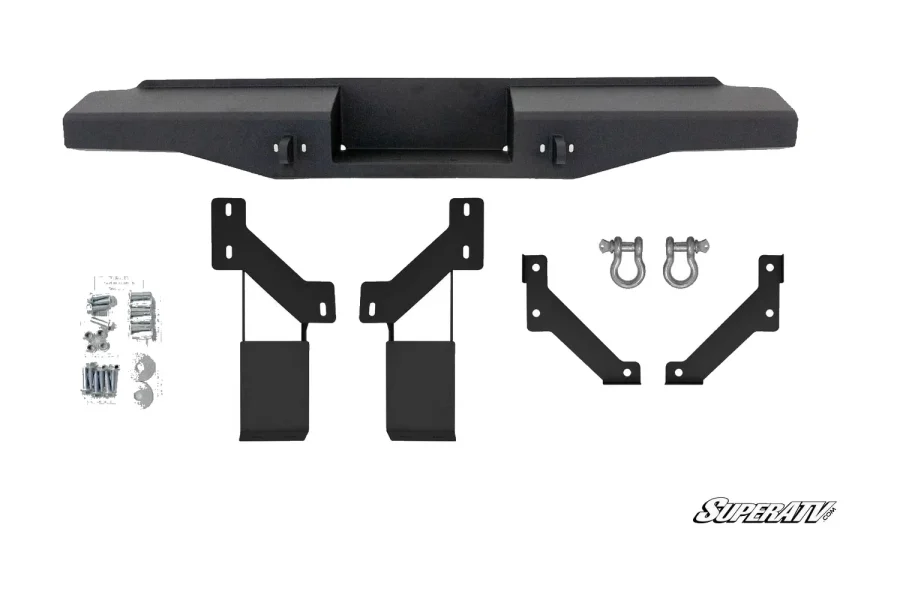

This is SuperATV’s sheet metal rear bumper for the Can-Am Defender HD10. It puts steel plate across the back of the machine, fastened to the frame, and it turns that space into somewhere to mount a rear winch or a light bar, with two D-ring mounts for pulling and towing.
Which Defender it fits
- Defender HD10, HD10 DPS, HD10 XT and HD10 XT Cab, 2016 and newer
- Defender HD10 XTP, HD10 XMR and HD10 Mossy Oak, 2018 and newer
- Defender HD10 Limited, 2020 and newer
- Defender MAX HD10 DPS, MAX HD10 XT and MAX HD10 XT Cab, 2017 and newer
- Defender MAX HD10 Lone Star Edition, 2018 and newer
- Defender MAX HD10 XMR, 2019 and newer
- Defender MAX HD10 Limited, 2020 and newer
The Defender Pro and the six wheel Defender are not on the fitment list. The other engine sizes are separate listings: the sheet metal rear bumper for the Defender HD8 and the sheet metal rear bumper for the Defender HD9.
Winch or light bar
The bumper has one accessory spot and two ways to use it. SuperATV describes swapping the winch for a 12 inch LED light bar, so plan on one or the other. A rear winch is for pulling the machine back out the way it came in, which is often the shortest way out of a mud hole. A rear light bar is for backing up to a trailer or working behind the machine after dark. Under Add a Winch, 3500 lb. puts the winch in the order with the bumper. No winch is the bumper on its own, and there is no light bar option on this listing.
For the other end of the machine, see the winch-ready front bumper for the Defender HD10. Everything else is in UTV bumpers.
More parts for this machine: Can-Am Defender accessories.
Features
- Winch mount: built in, and pre-fit for SuperATV's 3500 lb. Black Ops Winch
- Light bar: precut holes for a 12 inch LED light bar
- Recovery points: two D-ring mounts
- Add a Winch: 3500 lb. or No winch
Tech Specs
| Material | 3 mm (1/8 inch) thick steel plating |
|---|---|
| Mounting Type | A direct bolt on fit, secured directly to the frame |
| Winch Bolt Pattern | 3.0 x 4.87 inches (76 x 124 mm). SuperATV says it matches many leading winch models and tells you to check yours before installing |
Installation
SuperATV describes a direct bolt on fit, with the bumper secured to the frame. A plate steel bumper is awkward to hold in place on your own, so have a second person or a jack take the weight while you start the bolts by hand. If you are adding the winch, remember that a rear winch needs power run to the back of the machine. Plan that part before the bumper goes on.
FAQs
Does it come with a winch?
Only if you choose 3500 lb. under Add a Winch. The No winch choice is the bumper by itself.
Will my own winch bolt up?
The winch mounting bolt pattern is 3.0 x 4.87 inches (76 x 124 mm). SuperATV says that matches many leading winch models, and to check your model before installing.
Can I run the winch and the light bar together?
SuperATV describes the light bar as a swap for the winch. Plan on one or the other.
Will it fit a Defender MAX?
Yes, for the Defender MAX HD10 trims in the list above.
Will it fit a Defender HD8 or HD9?
Those are separate listings, linked above. Order the one that matches your engine size.
