Overview

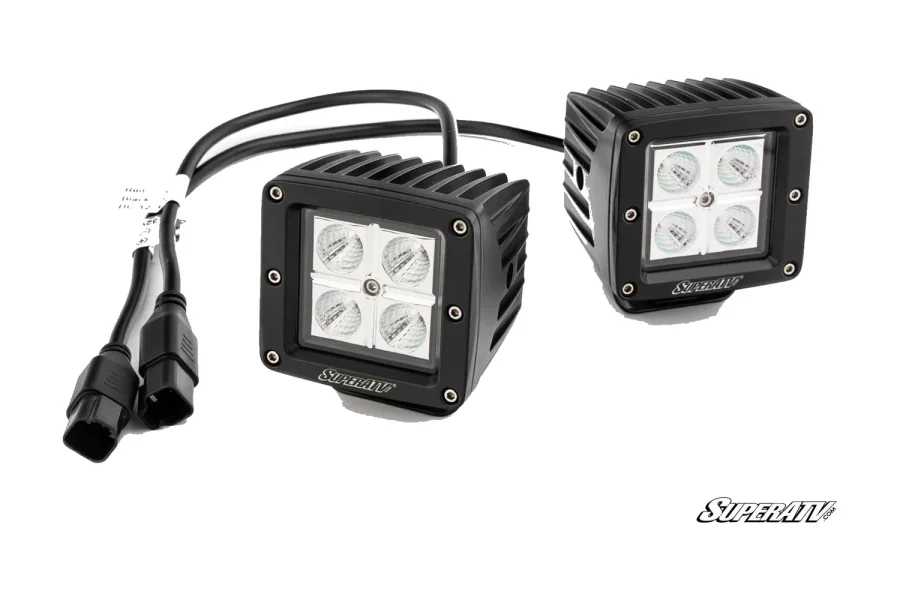

These are SuperATV’s 3 inch LED cube lights. They are small lights you aim where the headlights do not reach: wider out front, off to the sides, or on the rear bumper to back up by. You choose clear or amber.
What it fits
This is a universal light with no machine list. Out of the box it bolts down with the included brackets. To hang it from the cage, add the “1.75 inch Cage Mount (See Fitment)” or the “Formed Cage Mount (See Fitment)” option, whichever matches your cage.
SuperATV’s fitment note for this product reads: will not work with full enclosure cab doors. If you run full cab doors, plan on a mounting spot away from the door openings, and ask us if you are unsure.
Clear Light or Amber Light
That is the main decision here. Clear is the white light most people want for seeing more ground. Amber is the pick if you want a light that stands apart from your headlights, or if you ride in a group in heavy dust and want to be seen. Both styles come with each bracket choice: “No Additional Brackets”, the 1.75 inch cage mount or the formed cage mount.
More lights like this: pod and cube lights. Everything else is in UTV lighting.
Features
- Light: 12 W cube light, 1,920 raw lumens per light
- Current draw: 1 amp at 12 V per light
- Build: aluminum housing with a polycarbonate shield
- Water resistance: IP67, which SuperATV gives as immersion up to 1 m for up to 30 minutes
- Style: Clear Light or Amber Light
Tech Specs
| Leds | 4 OSRAM 3 W LEDs per light |
|---|---|
| Working Temperature | -40°F to 140°F |
Installation
SuperATV describes the install as easy, and the wiring harness and rocker switch come with the lights. Bolt the lights down or clamp them to the cage, run the harness to the dash, and keep the wire away from the exhaust and the suspension. Aim them after dark against a wall or a tree line before the final tighten.
FAQs
How much power do they draw?
SuperATV lists 1 amp at 12 V per light, and 12 W per light.
What does IP67 mean here?
SuperATV gives it as immersion up to 1 m for up to 30 minutes.
Is it a spot or a flood beam?
The maker's features and description for this light do not name a beam pattern, so we do not either.
Do I need the cage brackets?
Only if you want the lights on the cage. The lights come with brackets to bolt them down somewhere else, such as a bumper.
Can I run them at the back of a four seat machine?
Yes, with enough wire. The extended cube light wiring harness is made for that. Pick the connector style that page lists for these lights.
